# Logistic Regression
### Prof. Maria Tackett

---

<!--
layout: true

<div class="my-footer">
<span>
<a href="http://datasciencebox.org" target="_blank">datasciencebox.org</a>
</span>
</div>
-->

class: middle center

## [Click for PDF of slides](21-classification.pdf)

---

## Introduction

Multiple regression allows us to relate a numerical response variable to one or
more numerical or categorical predictors.

We can use multiple regression models
to understand relationships, assess differences, and make predictions.

But what about a situation where the response of interest is categorical and
binary?

- spam or not spam
- malignant or benign tumor
- survived or died
- admitted or or not admitted

---

## Titanic

On April 15, 1912 the famous ocean liner *Titanic* sank in the North Atlantic
after striking an iceberg on its maiden voyage. The dataset `titanic.csv`
contains the survival status and other attributes of individuals on the titanic.

- `survived`: survival status  (1 = survived, 0 = died)
- `pclass`: passenger class (1 = 1st, 2 = 2nd, 3 = 3rd)
- `name`: name of individual
- `sex`: sex (male or female)
- `age`: age in years
- `fare`: passenger fare in British pounds

We are interested in investigating the variables that contribute to passenger
survival. Do women and children really come first?

---

## Data and Packages

```r
library(tidyverse)
library(broom)
```

```r
glimpse(titanic)
```

```
## Rows: 887
## Columns: 7
## $ pclass   <dbl> 3, 1, 3, 1, 3, 3, 1, 3, 3, 2, 3, 1, 3, 3, 3, 2, 3, 2, 3, 3, …
## $ name     <chr> "Mr. Owen Harris Braund", "Mrs. John Bradley (Florence Brigg…
## $ sex      <chr> "male", "female", "female", "female", "male", "male", "male"…
## $ age      <dbl> 22, 38, 26, 35, 35, 27, 54, 2, 27, 14, 4, 58, 20, 39, 14, 55…
## $ fare     <dbl> 7.2500, 71.2833, 7.9250, 53.1000, 8.0500, 8.4583, 51.8625, 2…
## $ died     <dbl> 1, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 0, 1, 0, 1, 0, …
## $ survived <dbl> 0, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 1, 0, 1, 0, 1, …
```

---

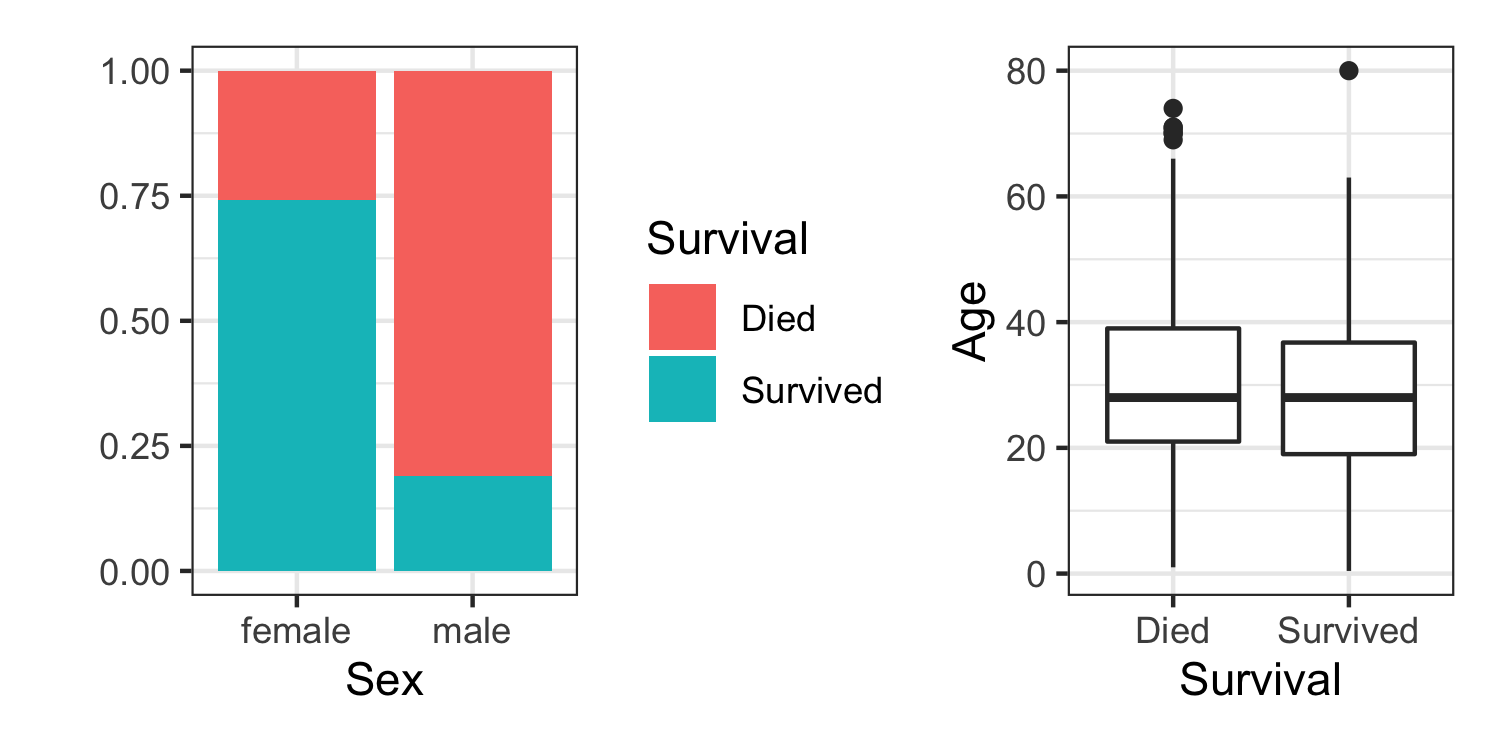

## Exploratory Data Analysis

---

## The linear model with multiple predictors

- Population model:

$$ y = \beta_0 + \beta_1~x_1 + \beta_2~x_2 + \cdots + \beta_k~x_k + \epsilon $$

- Sample model that we use to estimate the population model:

$$ \hat{y} = b_0 + b_1~x_1 + b_2~x_2 + \cdots + b_k~x_k $$

Denote by `$p$` the probability of survival and consider the model below.

$$ p = \beta_0 + \beta_1~x_1 + \beta_2~x_2 + \cdots + \beta_k~x_k + \epsilon$$

Can you see any problems with this approach?

---

## Linear Regression?

```r
lm_survival <- lm(survived ~ age + sex, data = titanic)
tidy(lm_survival)
```

```
## # A tibble: 3 x 5
##   term         estimate std.error statistic  p.value
##   <chr>           <dbl>     <dbl>     <dbl>    <dbl>
## 1 (Intercept)  0.752     0.0356      21.1   2.88e-80
## 2 age         -0.000343  0.000979    -0.350 7.26e- 1
## 3 sexmale     -0.551     0.0289     -19.1   3.50e-68
```

---

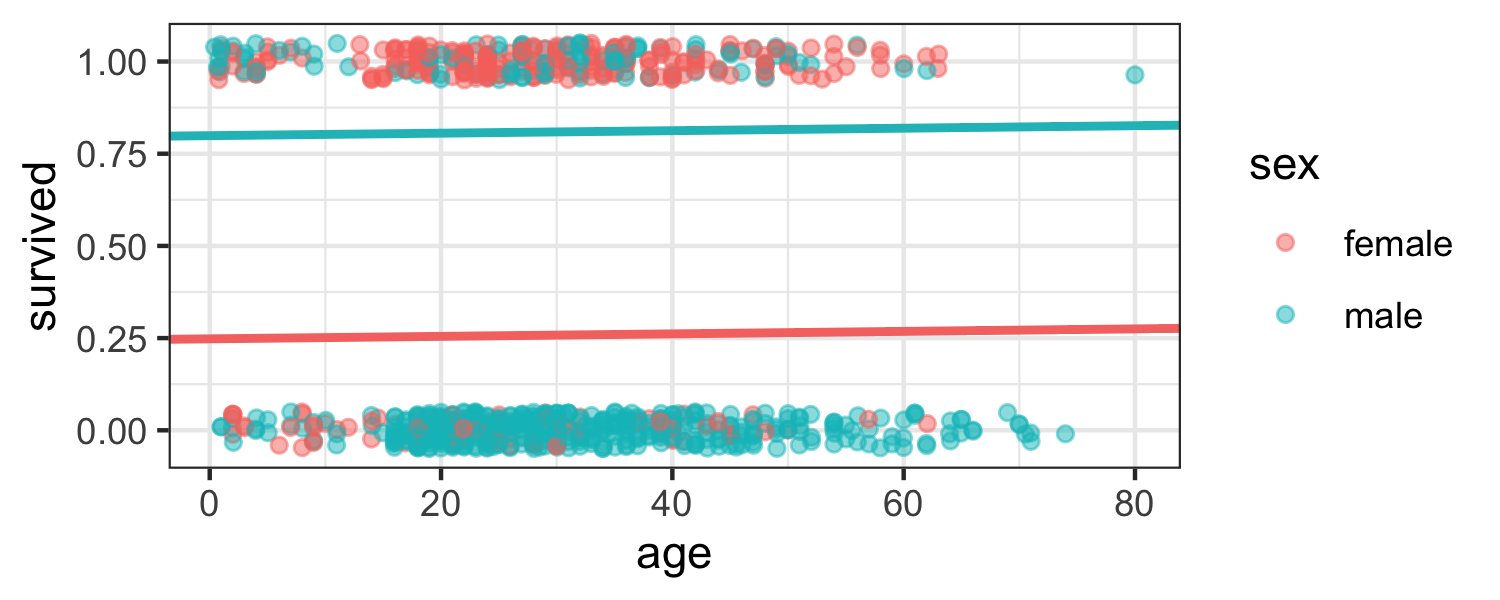

## Visualizing the Model

---

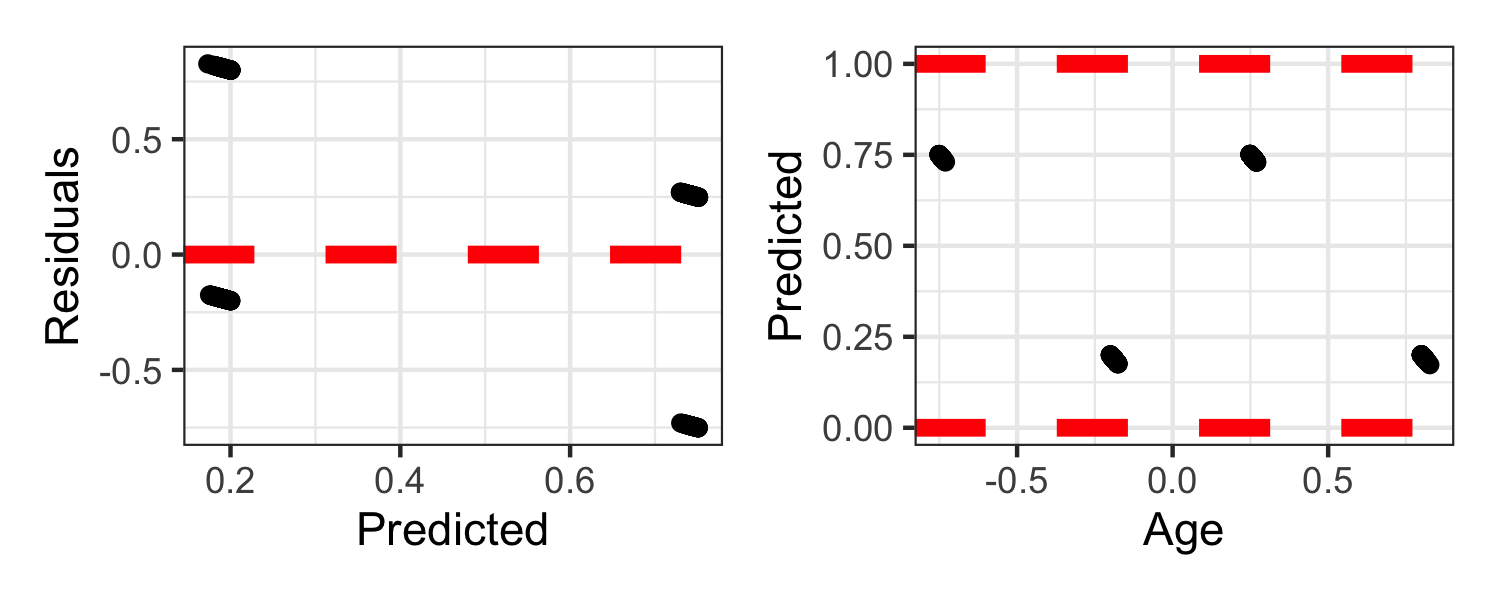

## Diagnostics

This isn't helpful! We need to develop a new tool.

---

## Preliminaries

- Denote by `$p$` the probability of some event
- The .vocab[odds] the event occurs is `$\frac{p}{1-p}$`

Odds are sometimes expressed as X : Y and read X to Y.

It is the ratio of successes to
failures, where values larger than 1 favor a success and values smaller than 1
favor a failure.

If `$P(A) = 1/2$`, the odds of `$A$` are `$\color{#1689AE}{\frac{1/2}{1/2} = 1}$`

If `$P(B) = 1/3$`, the odds of `$B$` are `$\color{#1689AE}{\frac{1/3}{2/3} = 0.5}$`

An .vocab[odds ratio] is a ratio of odds.

---

## Preliminaries

- Taking the natural log of the odds yields the .vocab[logit] of `$p$`

`$$\text{logit}(p) = \text{log}\left(\frac{p}{1-p}\right)$$`

The logit takes a value of `$p$` between 0 and 1 and outputs a value between
`$-\infty$` and `$\infty$`.

The .vocab[inverse logit (logistic)] takes a value between `$-\infty$` and `$\infty$` and
outputs a value between 0 and 1.

`$$\text{inverse logit}(x) = \frac{e^x}{1+e^x}$$`

---

## Logistic Regression Model

.alert[
`$$\text{log}\left(\frac{p}{1-p}\right) = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \ldots + \beta_k x_{k}$$`
]

Use the inverse logit to find the expression for `$p$`.

.alert[
`$$p = \frac{e^{\beta_0 + \beta_1 x_1 + \beta_2 x_2 + \ldots + \beta_k x_{k}}}{1 + e^{\beta_0 + \beta_1 x_1 + \beta_2 x_2 + \ldots + \beta_k x_{k}}}$$`
]

We can use the logistic regression model to obtain predicted probabilities of
success for a binary response variable.

---

## Logistic Regression Model

We handle fitting the model via computer using the `glm` function.

```r
logit_mod <- glm(survived ~ sex + age, data = titanic,
                 family = "binomial")
tidy(logit_mod)
```

```
## # A tibble: 3 x 5
##   term        estimate std.error statistic  p.value
##   <chr>          <dbl>     <dbl>     <dbl>    <dbl>
## 1 (Intercept)  1.11      0.208       5.34  9.05e- 8
## 2 sexmale     -2.50      0.168     -14.9   3.24e-50
## 3 age         -0.00206   0.00586    -0.351 7.25e- 1
```

---

## Logistic Regression Model

And use `augment` to find predicted log-odds.

```r
pred_log_odds <- augment(logit_mod)
```

---

## The Estimated Logistic Regression Model

.midi[

```r
tidy(logit_mod)
```

`$$\text{log}\left(\frac{\hat{p}}{1-\hat{p}}\right) = 1.11 - 2.50~sex - 0.00206~age$$`
`$$\hat{p} = \frac{e^{1.11 - 2.50~sex - 0.00206~age}}{{1+e^{1.11 - 2.50~sex - 0.00206~age}}}$$`

---

## Interpreting coefficients

.alert[
`$$\text{log}\left(\frac{\hat{p}}{1-\hat{p}}\right) = 1.11 - 2.50~sex - 0.00206~age$$`
]

<br>

Holding sex constant, for every additional year of age, we expect the log-odds of survival to decrease by approximately 0.002.

<br>

Holding age constant, we expect males to have a log-odds of survival that is 2.50 less than females.

---

## Interpreting coefficients

.alert[
`$$\frac{\hat{p}}{1-\hat{p}} = e^{1.11 - 2.50~sex - 0.00206~age}$$`
]

<br>

Holding sex constant, for every one year increase in age, the odds of survival are expected to multiply by a factor of `$e^{-0.00206} = 0.998$`.

<br>

Holding age constant, the odds of survival for males are `$e^{-2.50} = 0.082$` times the odds of survival for females.

---

## Classification

- Logistic regression allows us to obtain predicted probabilities of success
for a binary variable.
- By imposing a threshold (for example if the probability is greater than
`$0.50$`) we can create a classifier.

```
## # A tibble: 2 x 3
##   survived  Died Survived
##      <dbl> <int>    <int>
## 1        0   464       81
## 2        1   109      233
```

---

## Strengths and Weaknesses

.vocab[Weaknesses]

- Logistic regression has assumptions: independence and linearity in the log-odds (some other methods require fewer assumptions)
- If the predictors are correlated,  coefficient estimates may be unreliable

.vocab[Strengths]

- Straightforward interpretation of coefficients
- Handles numerical and categorical predictors
- Can quantify uncertainty around a prediction
- Can extend to more than 2 categories (multinomial regression)
