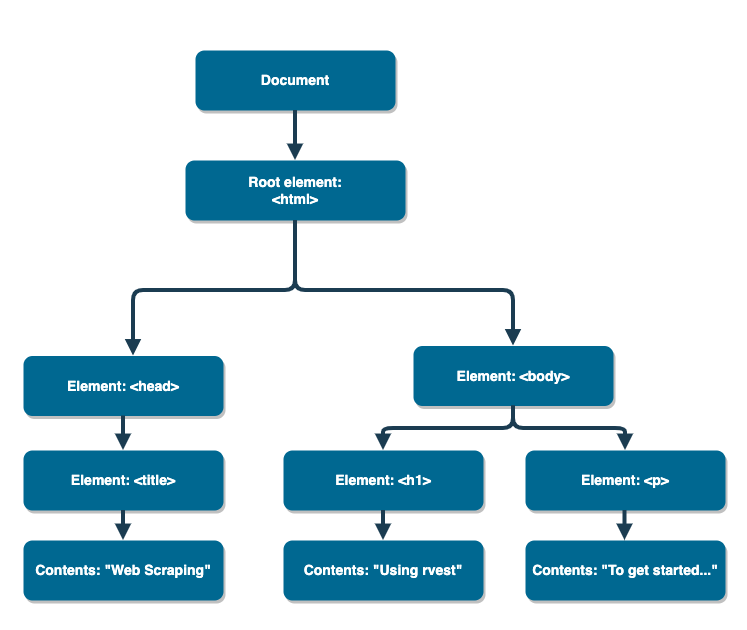

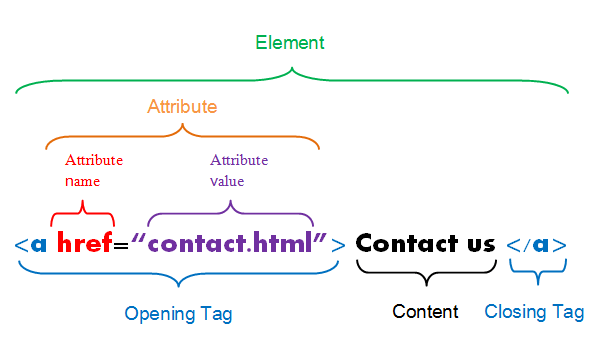

class: center, middle, inverse, title-slide # Web scraping ### Prof. Maria Tackett --- layout: true <div class="my-footer"> <span> <a href="http://datasciencebox.org" target="_blank">datasciencebox.org</a> </span> </div> --- class: middle center ## [Click for PDF of slides](25-web-scraping.pdf) --- class: middle # Scraping the web --- ## Scraping the web: what? why? - Increasing amount of data is available on the web -- - These data are provided in an unstructured format: you can always copy&paste, but it's time-consuming and prone to errors -- - Web scraping is the process of extracting this information automatically and transform it into a structured dataset -- - Two different scenarios: - Screen scraping: extract data from source code of website, with html parser (easy) or regular expression matching (less easy). - Web APIs (application programming interface): website offers a set of structured http requests that return JSON or XML files. --- class: middle # Web Scraping with rvest --- ## Hypertext Markup Language (HTML) .midi[ - HTML describes the structure of a web page; your browser interprets the structure and contents and displays the results. - The basic building blocks include elements, tags, and attributes. - an element is a component of an HTML document - elements contain tags (start and end tag) - attributes provide additional information about HTML elements ] --- ## Hypertext Markup Language (HTML) <img src="img/25/html-structure.png" width="70%" style="display: block; margin: auto;" /> --- ## Simple HTML document ```html <html> <head> <title>Web Scraping</title> </head> <body> <h1>Using rvest</h1> <p>To get started...</p> </body> </html> ``` -- We can visualize this in a tree-like structure. --- ## HTML tree-like structure <img src="img/25/html-tree.png" width="60%" style="display: block; margin: auto;" /> --- class: middle ### If we have access to an HTML document, then how can we easily extract information and get it in a format that's useful for analysis? --- ## rvest .pull-left[ - The **rvest** package makes basic processing and manipulation of HTML data straight forward - It's designed to work with pipelines built with `%>%` ] .pull-right[ <img src="img/25/rvest.png" width="230" style="display: block; margin: auto 0 auto auto;" /> ] --- ## Core rvest functions - `read_html` - Read HTML data from a url or character string - `html_node ` - Select a specified node from HTML document - `html_nodes` - Select specified nodes from HTML document - `html_table` - Parse an HTML table into a data frame - `html_text` - Extract tag pairs' content - `html_name` - Extract tags' names - `html_attrs` - Extract all of each tag's attributes - `html_attr` - Extract tags' attribute value by name --- ## Example: simple_html Let's suppose we have the following HTML document from the example website with the URL `simple_html` ```html <html> <head> <title>Web Scraping</title> </head> <body> <h1>Using rvest</h1> <p>To get started...</p> </body> </html> ``` --- ## HTML in R Read in the document with `read_html()`. ```r page <- read_html(simple_html) #replace with URL in practice ``` -- What does this look like? -- ```r page ``` ``` ## {html_document} ## <html> ## [1] <head>\n<meta http-equiv="Content-Type" content="text/html; charset=UTF-8 ... ## [2] <body>\n<h1>Using rvest</h1>\n<p>To get started...</p>\n</body> ``` --- ## Subset with `html_nodes()` Let's extract the highlighted component below. .small[ ```r <html> <head> <title>Web Scraping</title> </head> <body> *<h1>Using rvest</h1> <p>To get started...</p> </body> </html> ``` ] -- .midi[ ```r h1_nodes <-page %>% html_nodes(css = "h1") h1_nodes ``` ``` ## {xml_nodeset (1)} ## [1] <h1>Using rvest</h1> ``` ] --- ## Extract contents and tag name Let's extract "Using rvest" and `h1`. .small[ ```r <html> <head> <title>Web Scraping</title> </head> <body> *<h1>Using rvest</h1> <p>To get started...</p> </body> </html> ``` ] -- .pull-left[ .midi[ ```r h1_nodes %>% html_text() ``` ``` ## [1] "Using rvest" ``` ] ] .pull-right[ .midi[ ```r h1_nodes %>% html_name() ``` ``` ## [1] "h1" ``` ] ] --- ## Scaling up Most HTML documents are not as simple as what we just examined. There may be tables, hundreds of links, paragraphs of text, and more. Naturally, we may wonder: 1. How do we handle larger HTML documents? 2. How do we know what to provide to `css` in function `html_nodes()` when we attempt to subset the HTML document? 3. Are these functions in `rvest` vectorized? For instance, are we able to get all the content in the `td` tags on the slide that follows? In Chrome, you can view the HTML document associated with a web page by going to `View > Developer > View Source`. --- ## SelectorGadget .pull-left[ - Open source tool that eases CSS selector generation and discovery - Can use through the [Chrome Extension](https://chrome.google.com/webstore/detail/selectorgadget/mhjhnkcfbdhnjickkkdbjoemdmbfginb) or the bookmark available on [selectorgadget.com](https://selectorgadget.com/) - Find out more on the [SelectorGadget vignette](https://cran.r-project.org/web/packages/rvest/vignettes/selectorgadget.html) ] .pull-right[ <img src="img/25/selector-gadget.png" width="1901" style="display: block; margin: auto;" /> ] --- ## Using the SelectorGadget .pull-left[ - .midi[Click on the app logo next to the search bar. A box will open in the bottom right of the website.] - .midi[Click on a page element (it will turn green), SelectorGadget will generate a minimal CSS selector for that element, and will highlight (yellow) everything that is matched by the selector.] ] .pull-right[ <img src="img/25/selector-gadget.gif" height="250" style="display: block; margin: auto;" /> ] - .midi[Click on a highlighted element to remove it from the selector (red), or click on an unhighlighted element to add it to the selector.] - .midi[Through this process of selection and rejection, SelectorGadget helps you come up with the appropriate CSS selector for your needs.] --- class: middle # Top 250 movies on IMDB --- ## Top 250 movies on IMDB Take a look at the source code, look for the `table` tag: <br> http://www.imdb.com/chart/top <img src="img/25/imdb_top_250.png" width="60%" style="display: block; margin: auto;" /> --- ## First check if you're allowed! ```r library(robotstxt) paths_allowed("http://www.imdb.com") ``` ``` ## [1] TRUE ``` vs. e.g. ```r paths_allowed("http://www.facebook.com") ``` ``` ## [1] FALSE ``` --- ## Select and format pieces .small[ ```r page <- read_html("http://www.imdb.com/chart/top") ``` ] -- .small[ ```r titles <- page %>% html_nodes(".titleColumn a") %>% html_text() ``` ] -- .small[ ```r years <- page %>% html_nodes(".secondaryInfo") %>% html_text() %>% str_replace("\\(", "") %>% # remove ( str_replace("\\)", "") %>% # remove ) as.numeric() ``` ] -- .small[ ```r scores <- page %>% html_nodes("#main strong") %>% html_text() %>% as.numeric() ``` ] -- .small[ ```r imdb_top_250 <- tibble( title = titles, year = years, score = scores) ``` ] --- ```r imdb_top_250 ``` ``` ## # A tibble: 250 x 3 ## title year score ## <chr> <dbl> <dbl> ## 1 The Shawshank Redemption 1994 9.2 ## 2 The Godfather 1972 9.1 ## 3 The Godfather: Part II 1974 9 ## 4 The Dark Knight 2008 9 ## 5 12 Angry Men 1957 8.9 ## 6 Schindler's List 1993 8.9 ## 7 The Lord of the Rings: The Return of the King 2003 8.9 ## 8 Pulp Fiction 1994 8.8 ## 9 The Good, the Bad and the Ugly 1966 8.8 ## 10 The Lord of the Rings: The Fellowship of the Ring 2001 8.8 ## # … with 240 more rows ``` --- .small[ ```r imdb_top_250 %>% * DT::datatable(options(list(dom = "p"))) ```
] --- ## Clean up / enhance May or may not be a lot of work depending on how messy the data are **See if you like what you got:** .midi[ ```r glimpse(imdb_top_250) ``` ``` ## Rows: 250 ## Columns: 3 ## $ title <chr> "The Shawshank Redemption", "The Godfather", "The Godfather: Pa… ## $ year <dbl> 1994, 1972, 1974, 2008, 1957, 1993, 2003, 1994, 1966, 2001, 199… ## $ score <dbl> 9.2, 9.1, 9.0, 9.0, 8.9, 8.9, 8.9, 8.8, 8.8, 8.8, 8.8, 8.8, 8.7… ``` ] -- **Add a variable for rank** .midi[ ```r imdb_top_250 <- imdb_top_250 %>% mutate(rank = 1:nrow(imdb_top_250)) ``` ] --- .small[ ```r imdb_top_250 %>% DT::datatable(options(list(dom = "p")), height = 350) ```

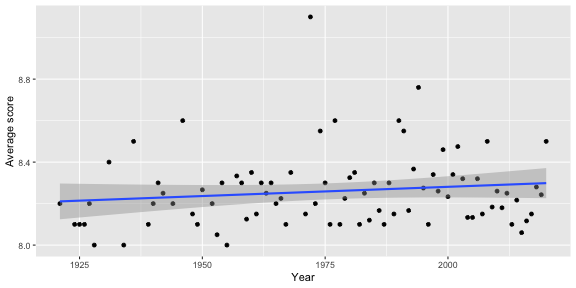

] --- ## Analyze .question[ How would you go about answering this question: Which 1995 movies made the list? ] -- .midi[ ```r imdb_top_250 %>% filter(year == 1995) ``` ``` ## # A tibble: 8 x 4 ## title year score rank ## <chr> <dbl> <dbl> <int> ## 1 Se7en 1995 8.6 20 ## 2 The Usual Suspects 1995 8.5 32 ## 3 Braveheart 1995 8.3 78 ## 4 Toy Story 1995 8.3 81 ## 5 Heat 1995 8.2 123 ## 6 Casino 1995 8.2 139 ## 7 Before Sunrise 1995 8.1 191 ## 8 La Haine 1995 8 228 ``` ] --- ## Analyze .question[ How would you go about answering this question: Which years have the most movies on the list? ] -- .midi[ ```r imdb_top_250 %>% group_by(year) %>% summarise(total = n()) %>% arrange(desc(total)) %>% head(5) ``` ``` ## # A tibble: 5 x 2 ## year total ## <dbl> <int> ## 1 1995 8 ## 2 2019 7 ## 3 1957 6 ## 4 2000 6 ## 5 2004 6 ``` ] --- .question[ How would you go about creating this visualization: Visualize the average yearly score for movies that made it on the top 250 list over time. ] .panelset[ .panel[.panel-name[Plot] <img src="25-web-scraping_files/figure-html/unnamed-chunk-29-1.png" style="display: block; margin: auto;" /> ] .panel[.panel-name[Code] ```r imdb_top_250 %>% group_by(year) %>% summarise(avg_score = mean(score)) %>% ggplot(aes(y = avg_score, x = year)) + geom_point() + geom_smooth(method = "lm") + labs(x = "Year", y = "Average score") ``` ] ] --- ## Potential challenges - Unreliable formatting at the source - Data broken into many pages - ... .question[ Compare the display of information at [raleigh.craigslist.org/search/apa](https://raleigh.craigslist.org/search/apa) to the list on the IMDB top 250 list. What challenges can you foresee in scraping a list of the available apartments? ]
